Drayton Digistat+1 Installation & User Guide

Rating 5.0 (votes: 1)

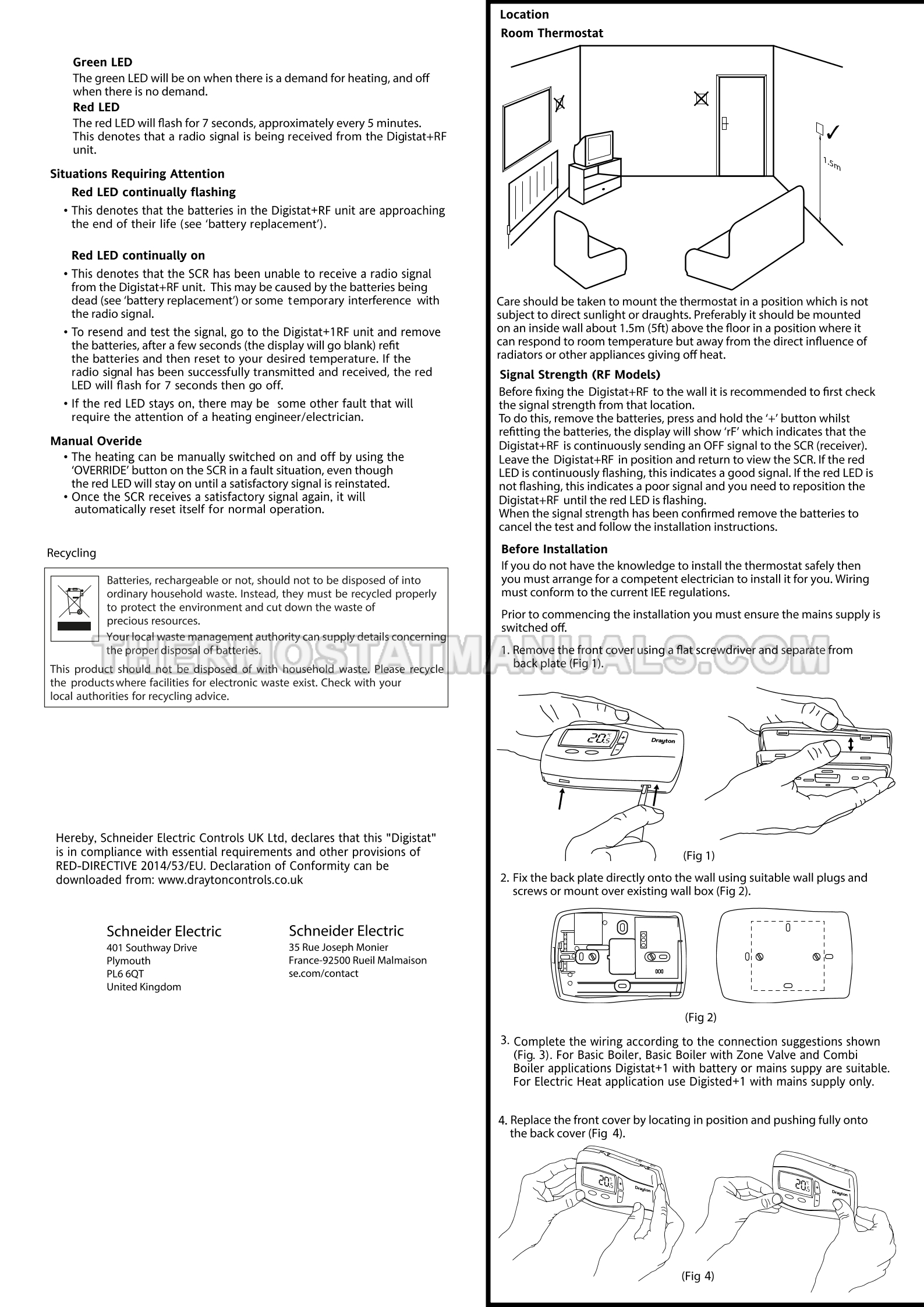

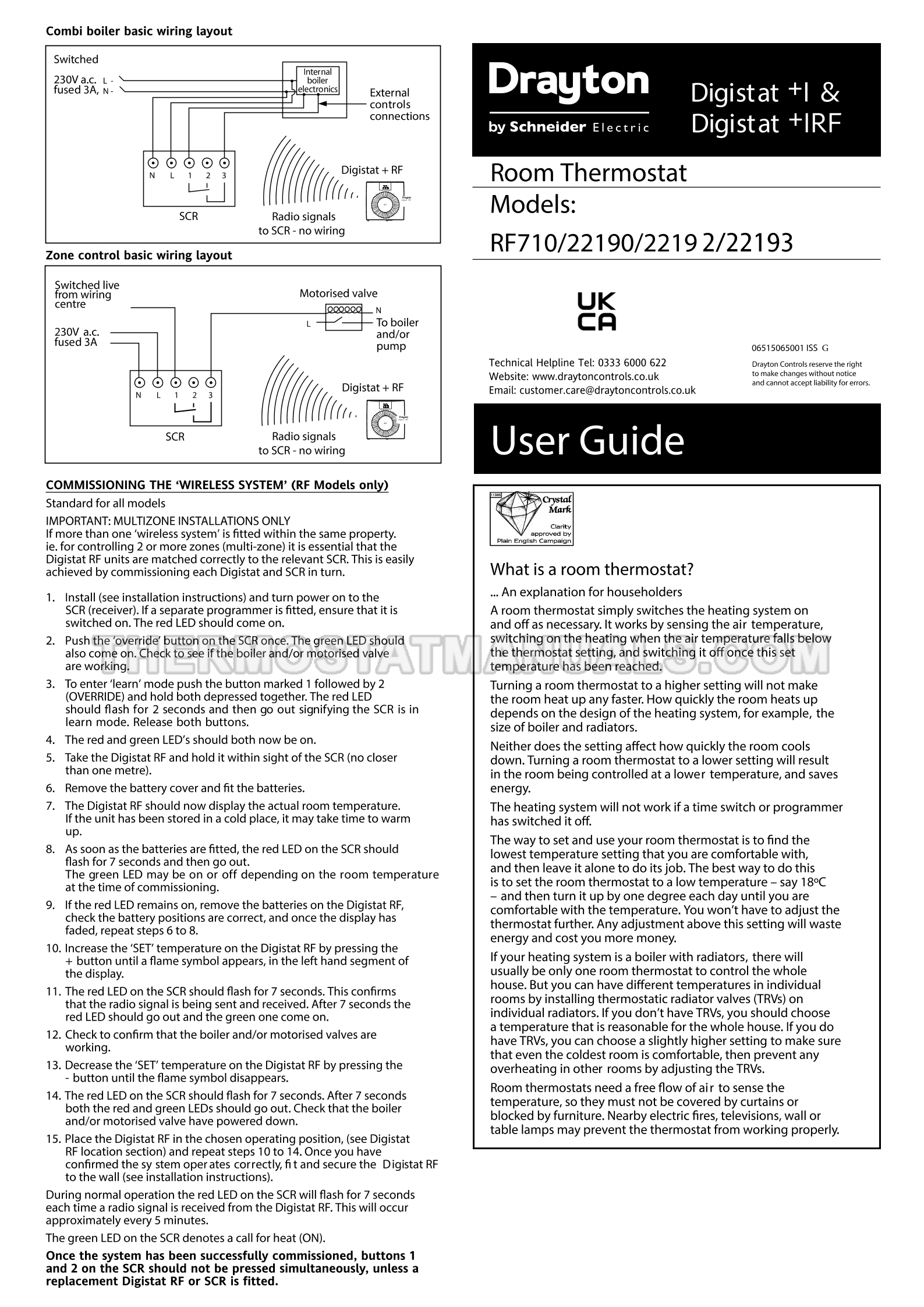

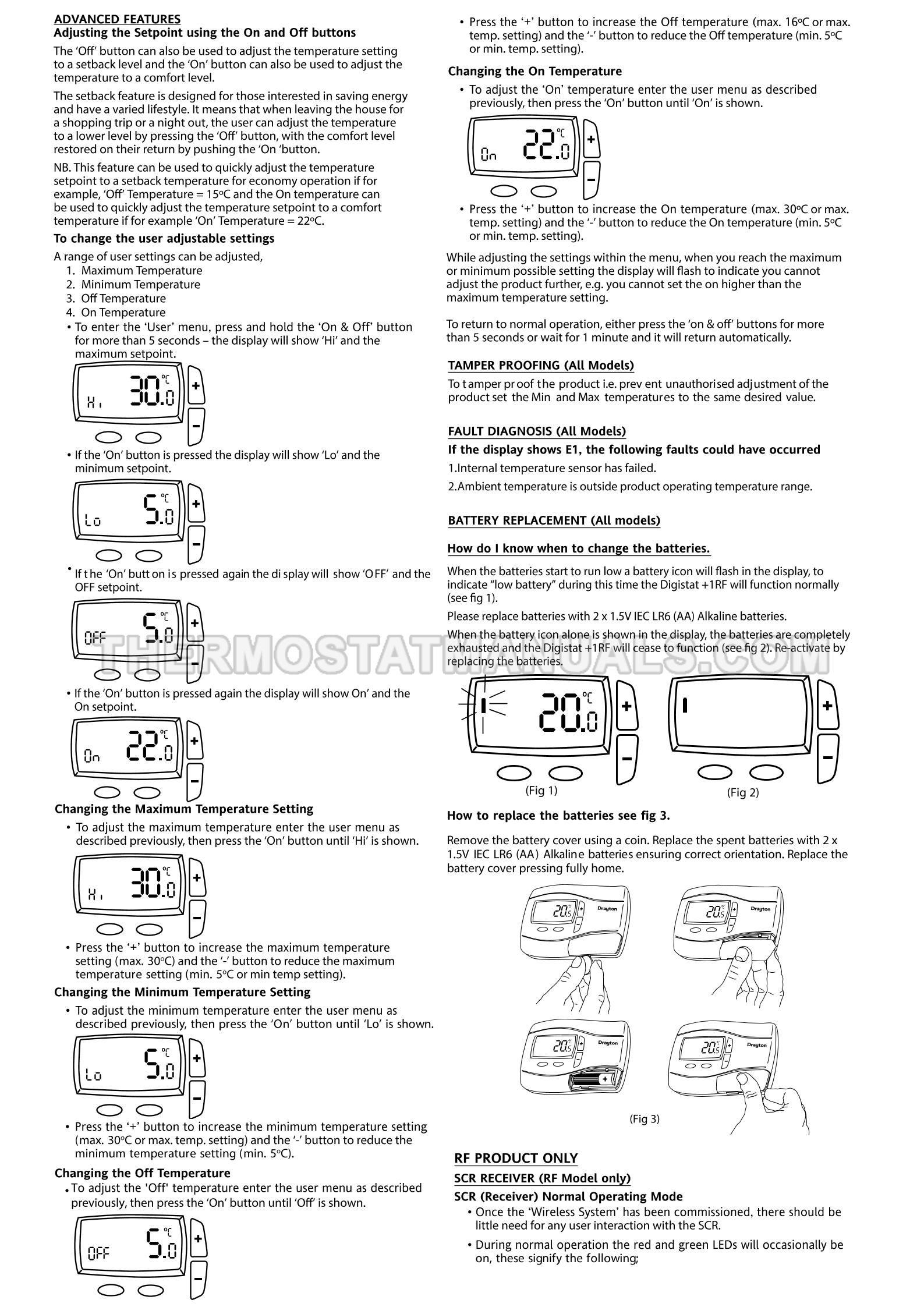

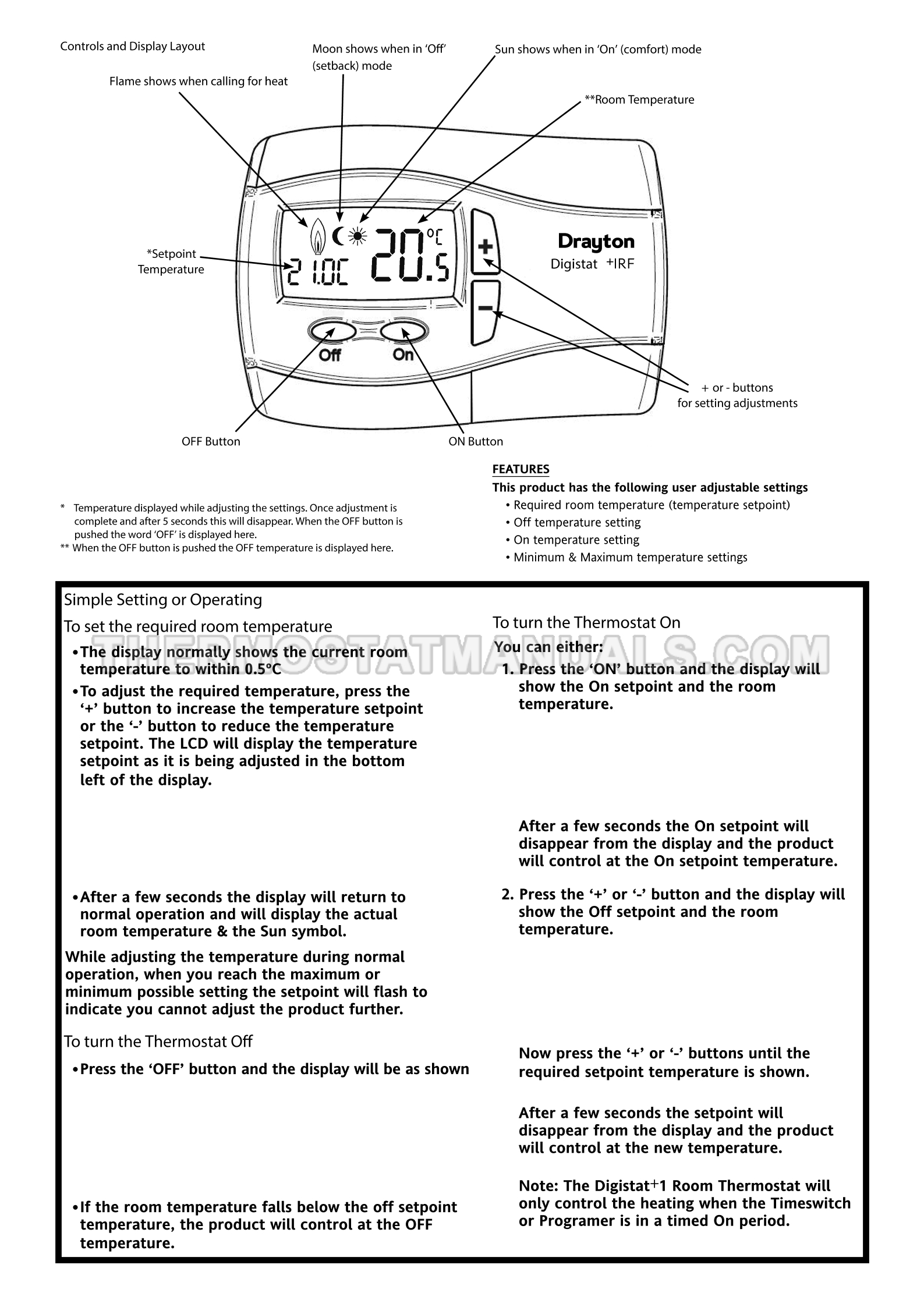

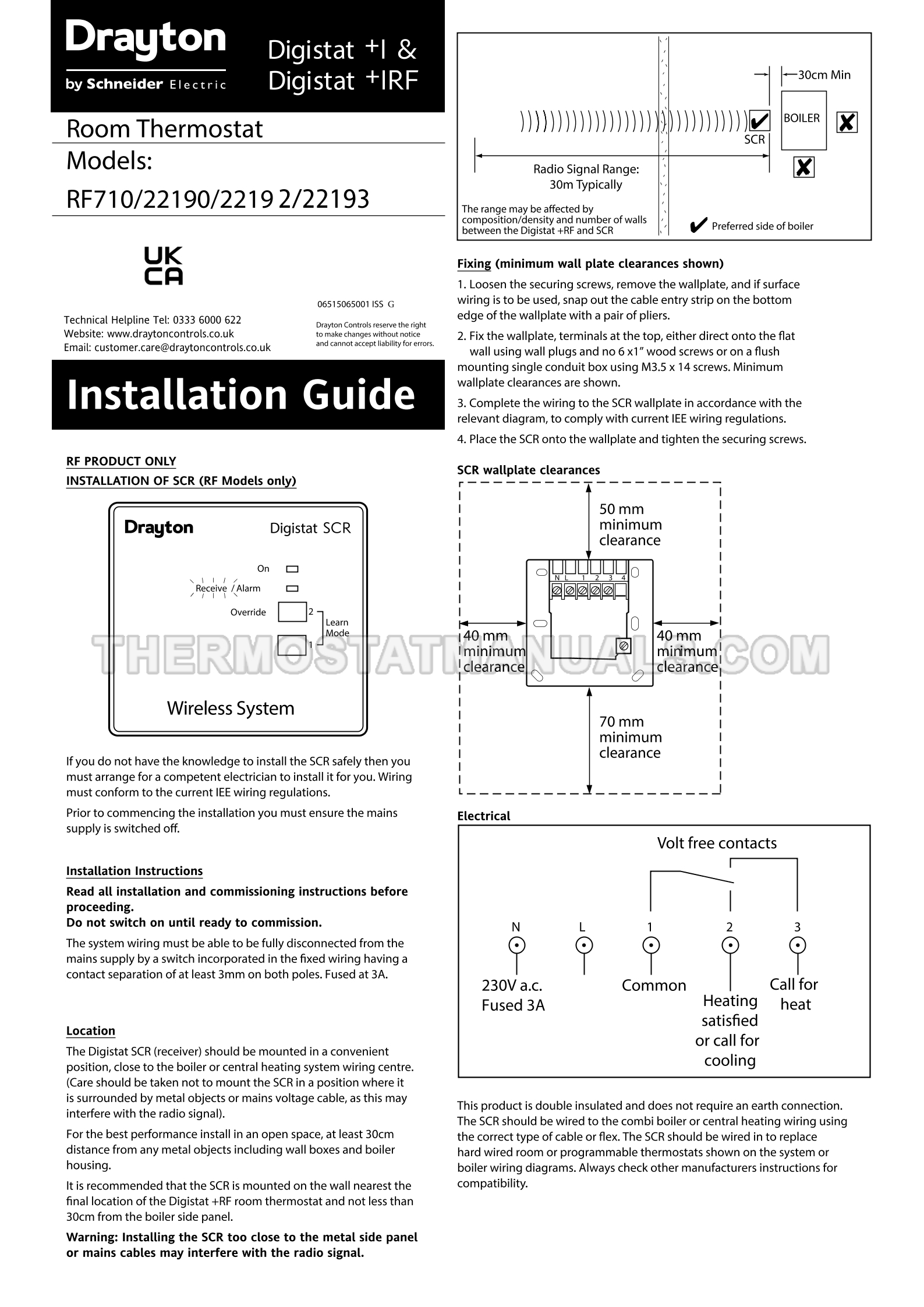

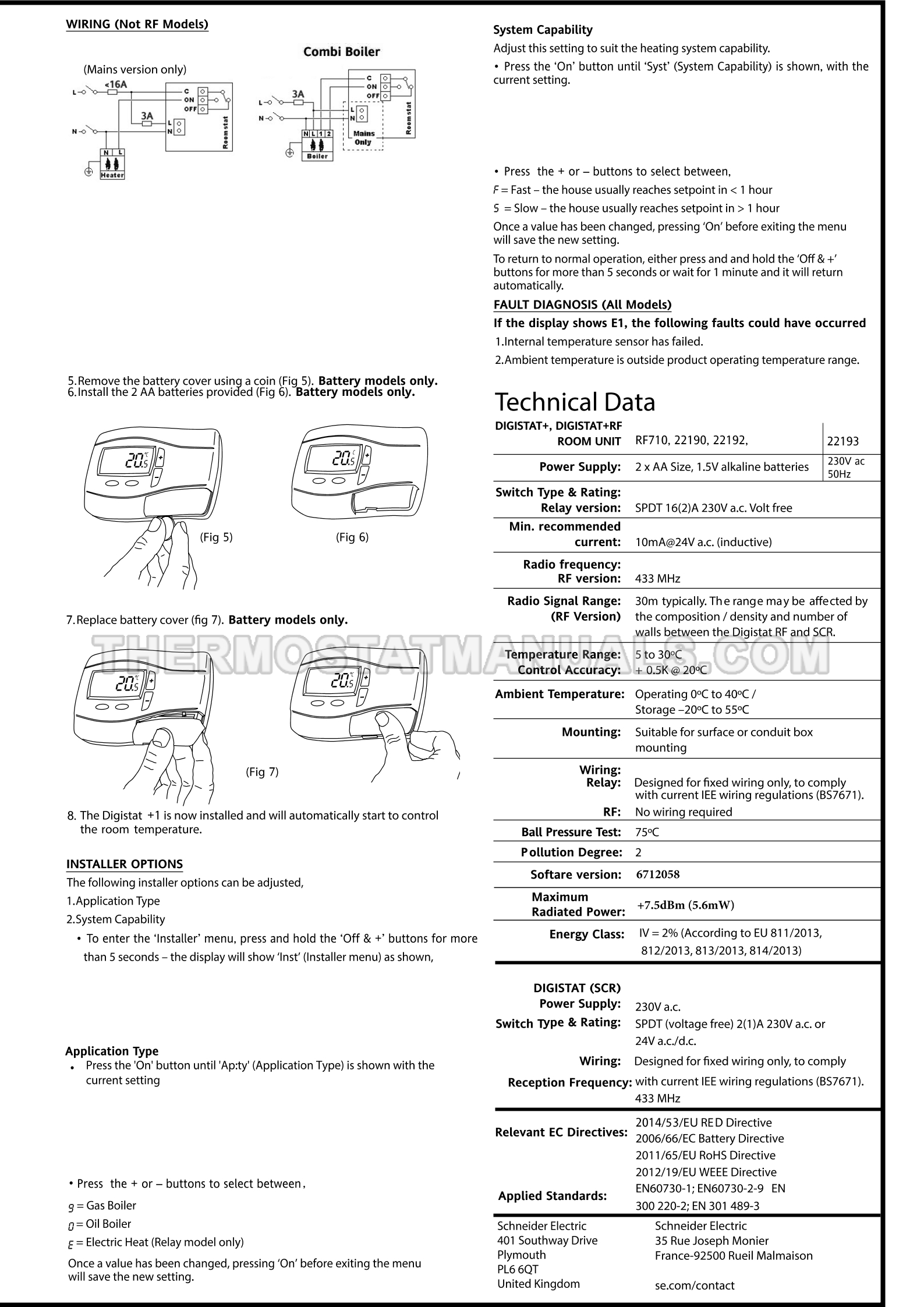

Drayton Digistat Digistat+1 Installation & User Guide Page #2 Drayton Digistat Digistat+1 Installation & User Guide Page #3 Drayton Digistat Digistat+1 Installation & User Guide Page #4 Drayton Digistat Digistat+1 Installation & User Guide Page #5 Drayton Digistat Digistat+1 Installation & User Guide Page #6 Drayton Digistat Digistat+1 Installation & User Guide Page #7

Description

To replace the old thermostat and install the Drayton Digistat+1, follow the steps described in the installation & user guide on the 6 pages. This will allow the easy-to-use wired thermostat with ON/OFF load compensation and tamper-proof min/max temperature limits to be installed correctly and proceed to device configuration.
