Drayton LP20RF Installation & User Guide

Rating 5.0 (votes: 1)

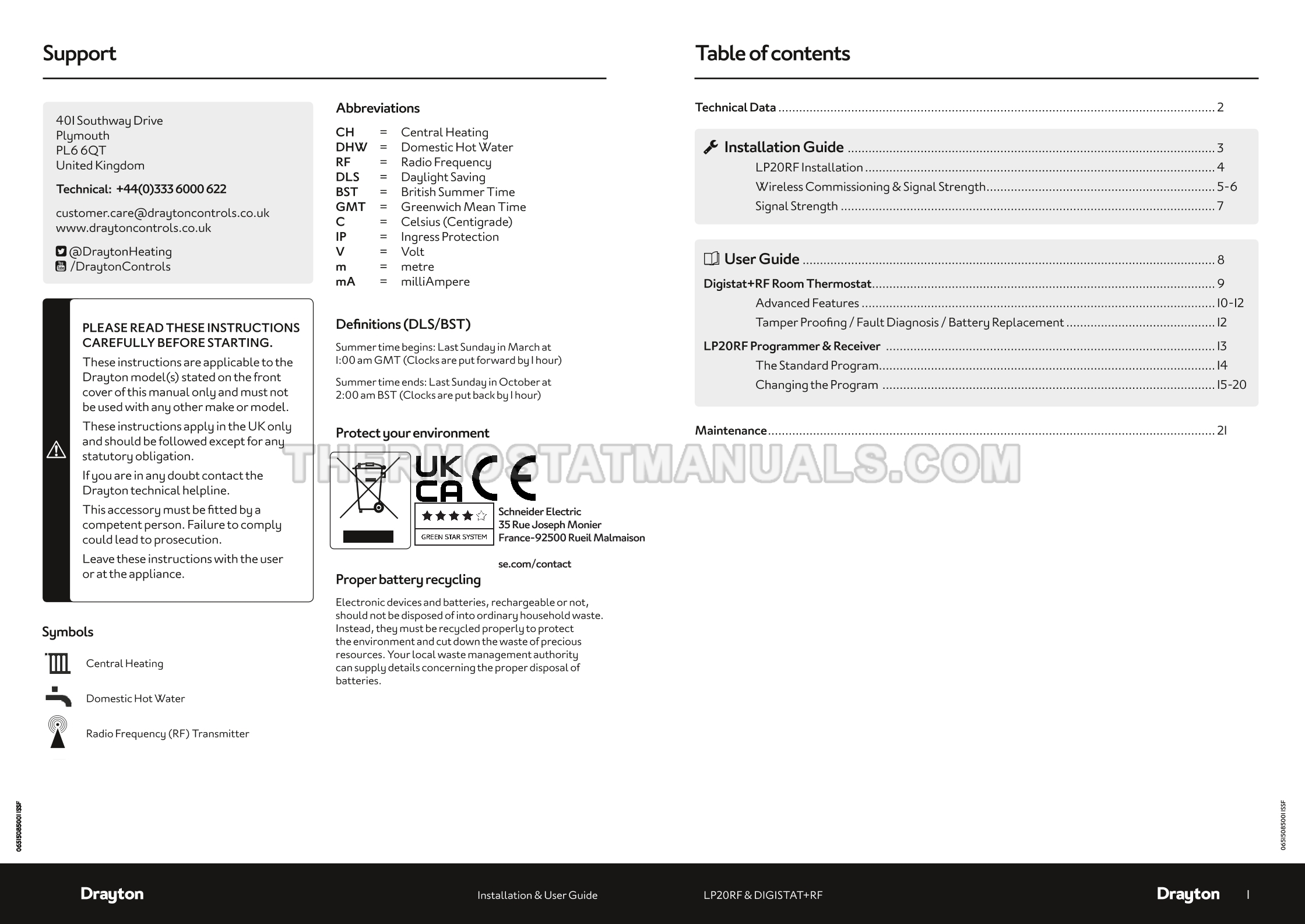

Drayton LP LP20RF Installation & User Guide Page #2

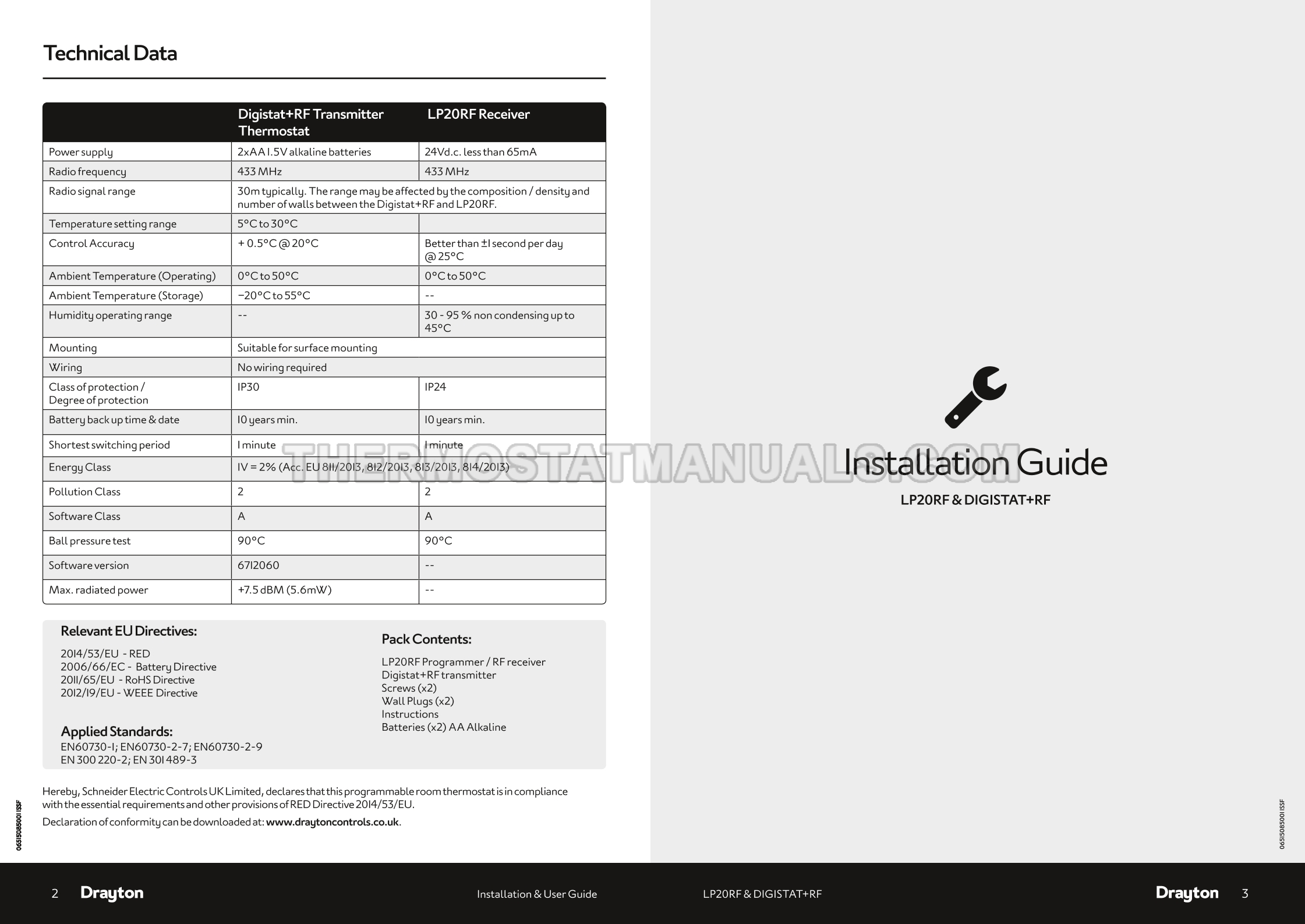

Drayton LP LP20RF Installation & User Guide Page #3

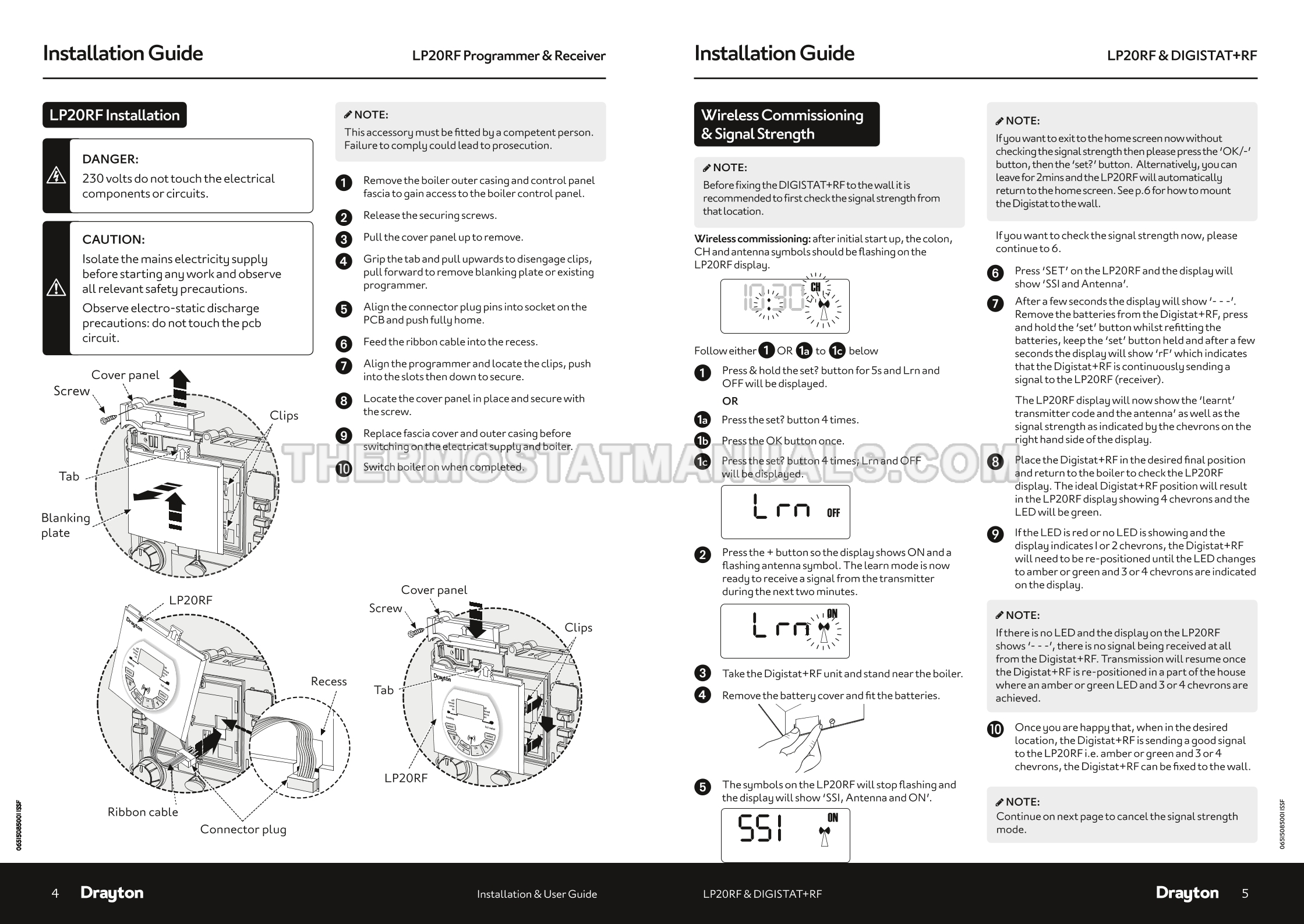

Drayton LP LP20RF Installation & User Guide Page #4

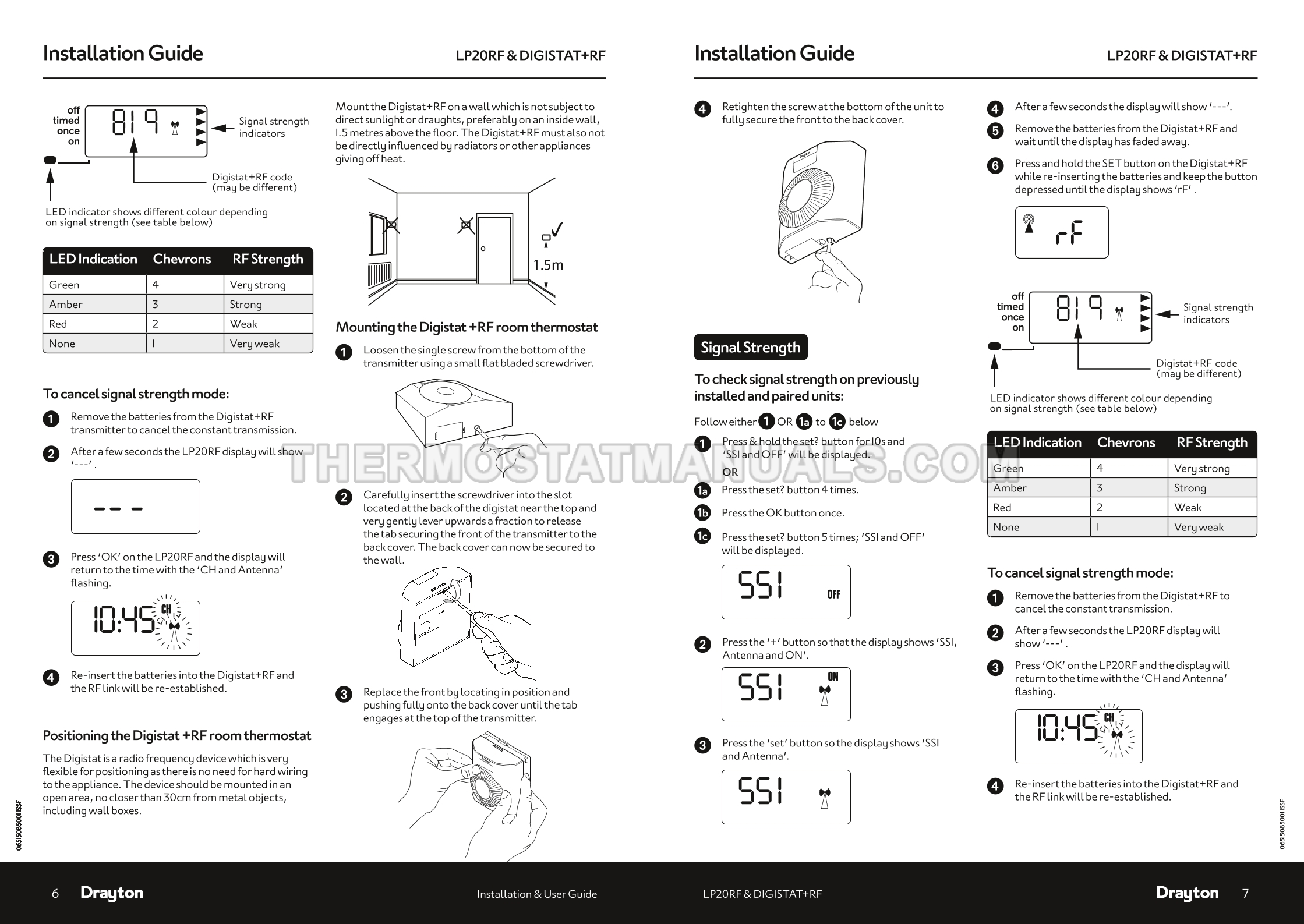

Drayton LP LP20RF Installation & User Guide Page #5

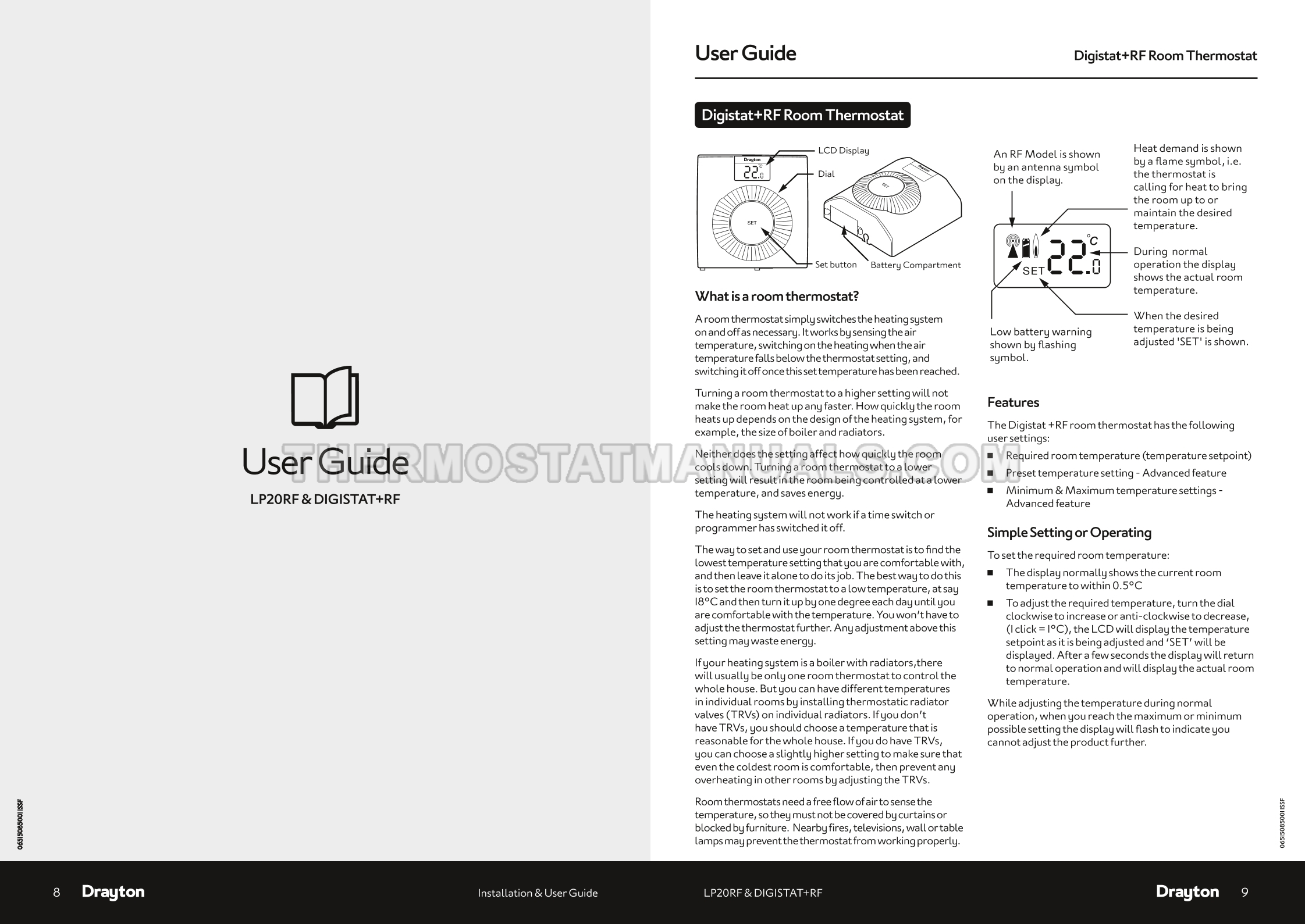

Drayton LP LP20RF Installation & User Guide Page #6

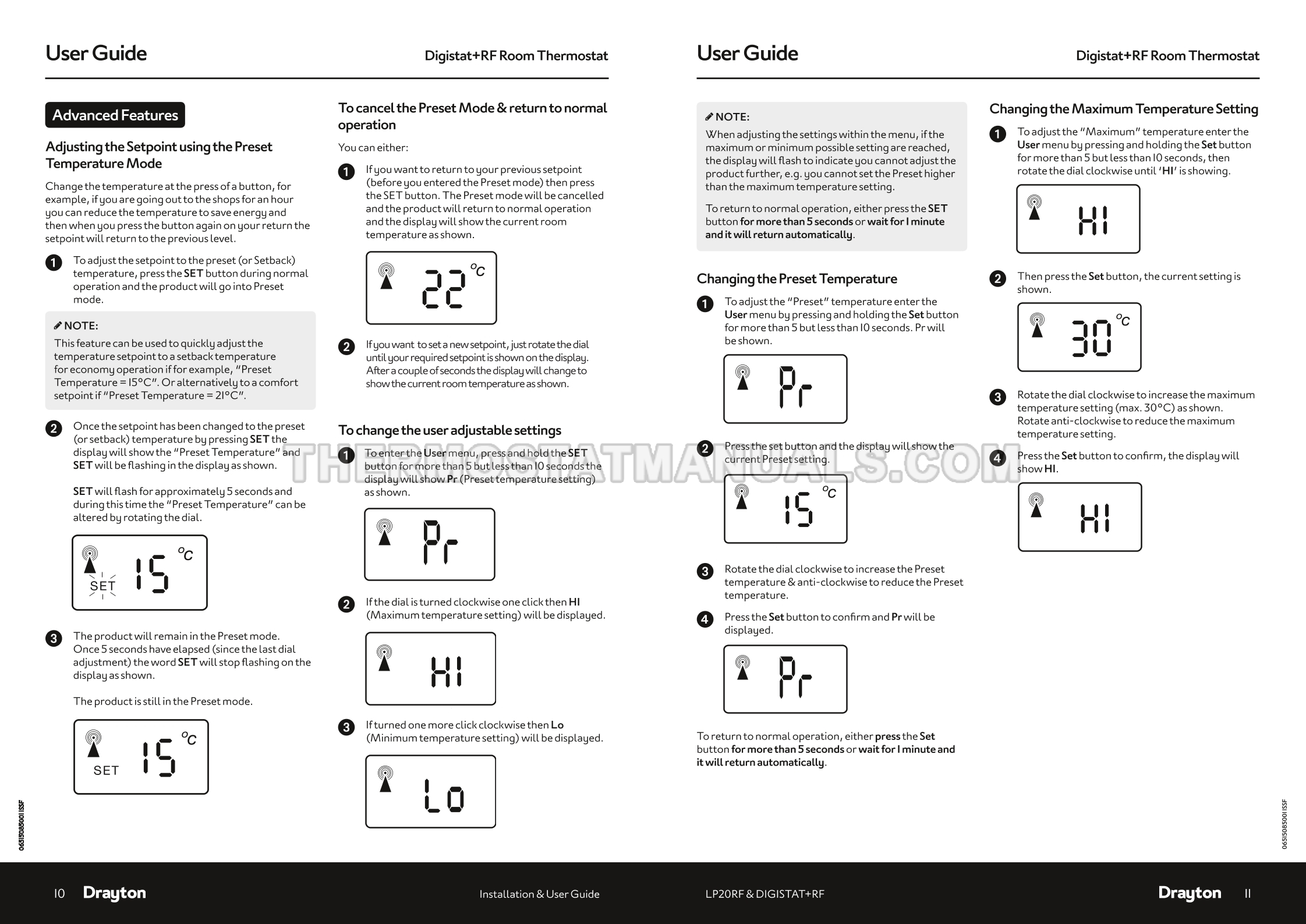

Drayton LP LP20RF Installation & User Guide Page #7

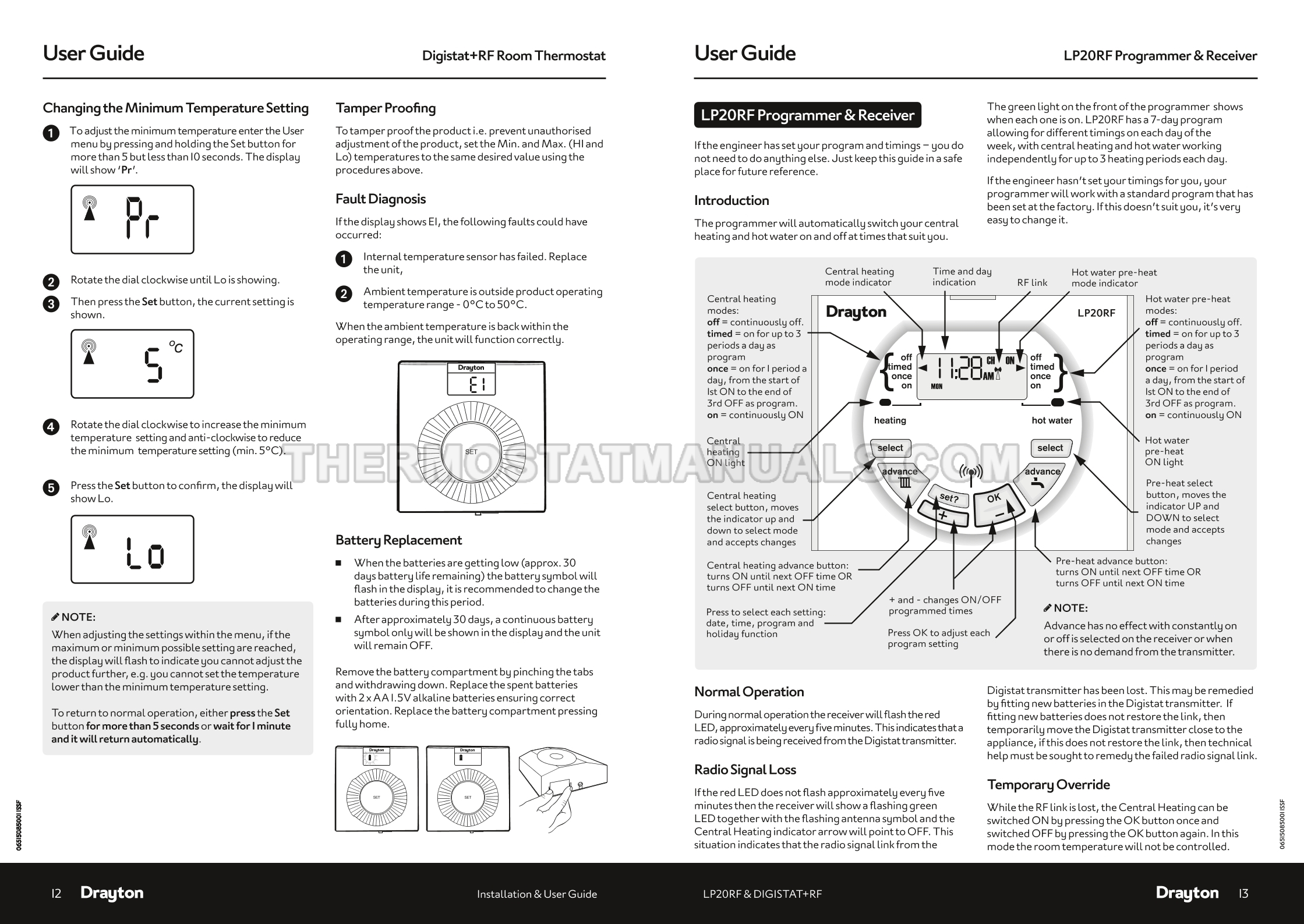

Drayton LP LP20RF Installation & User Guide Page #8

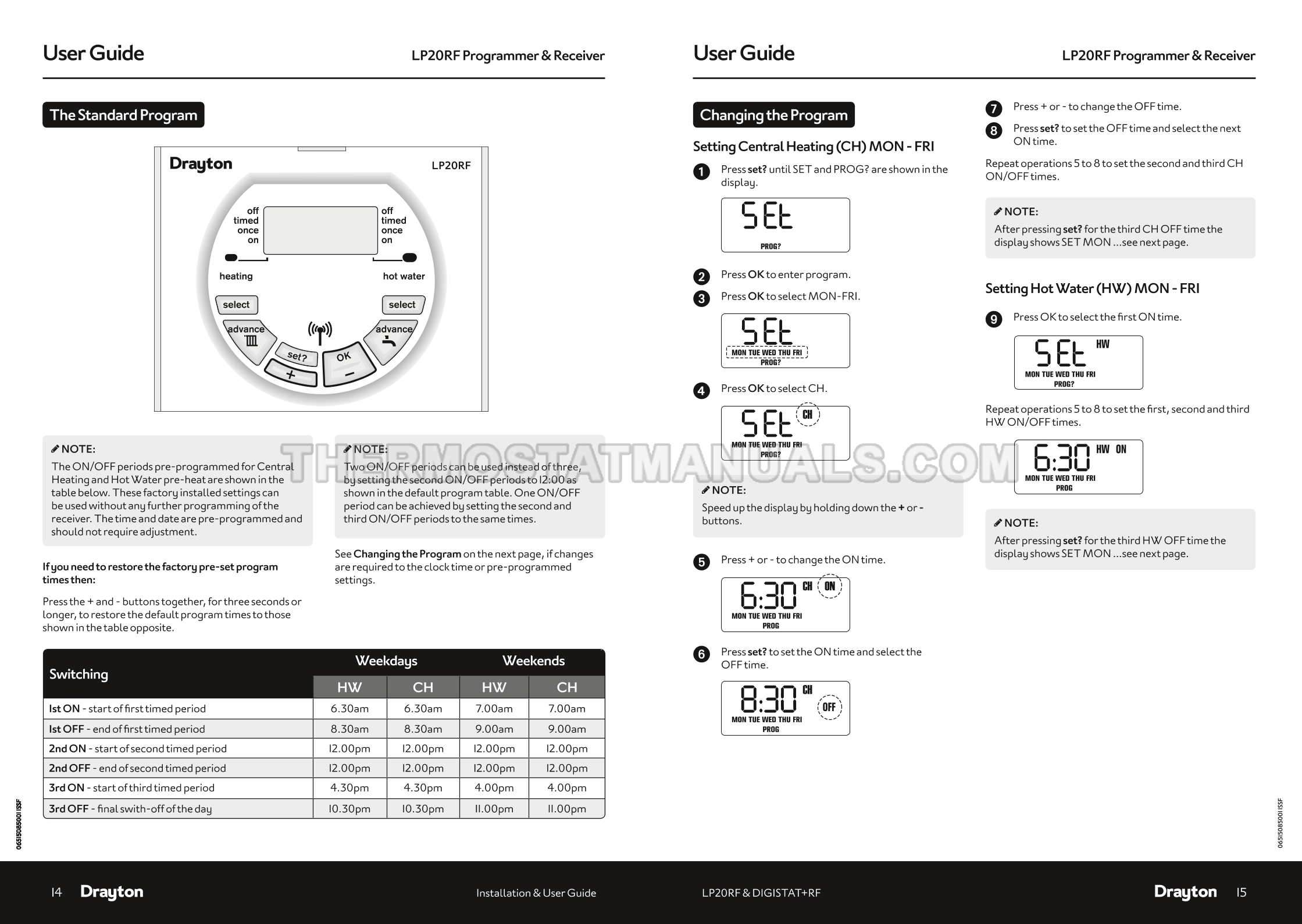

Drayton LP LP20RF Installation & User Guide Page #9

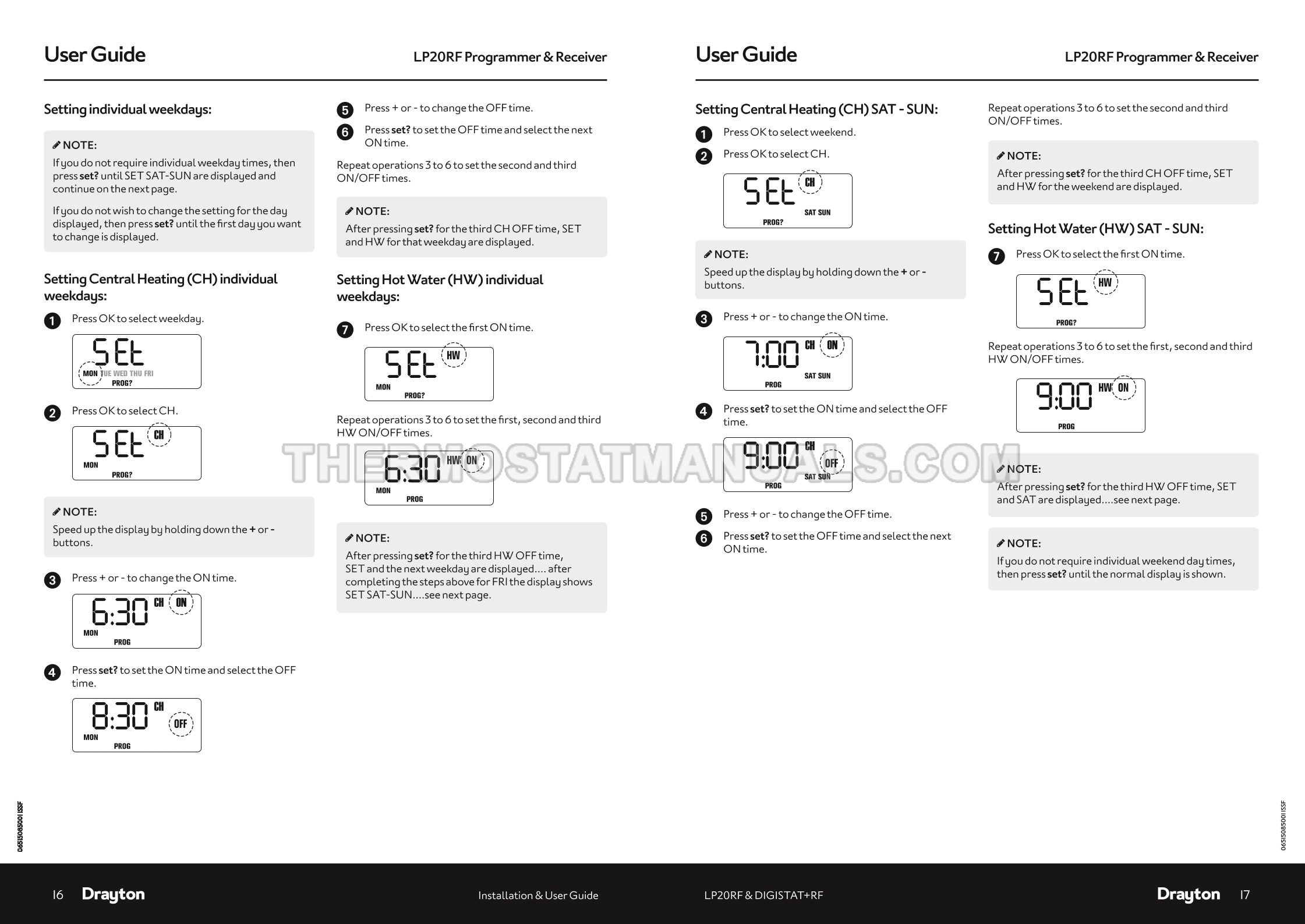

Drayton LP LP20RF Installation & User Guide Page #10

Drayton LP LP20RF Installation & User Guide Page #11

Drayton LP LP20RF Installation & User Guide Page #12

Drayton LP LP20RF Installation & User Guide Page #13

Description

Please read this installation & user guide for dual channel programmer with 7 day scheduling for heating and hot water pre-heat control thermostat carefully. Failure to follow these steps could result in damage of the Drayton LP20RF or a hazardous situation.
